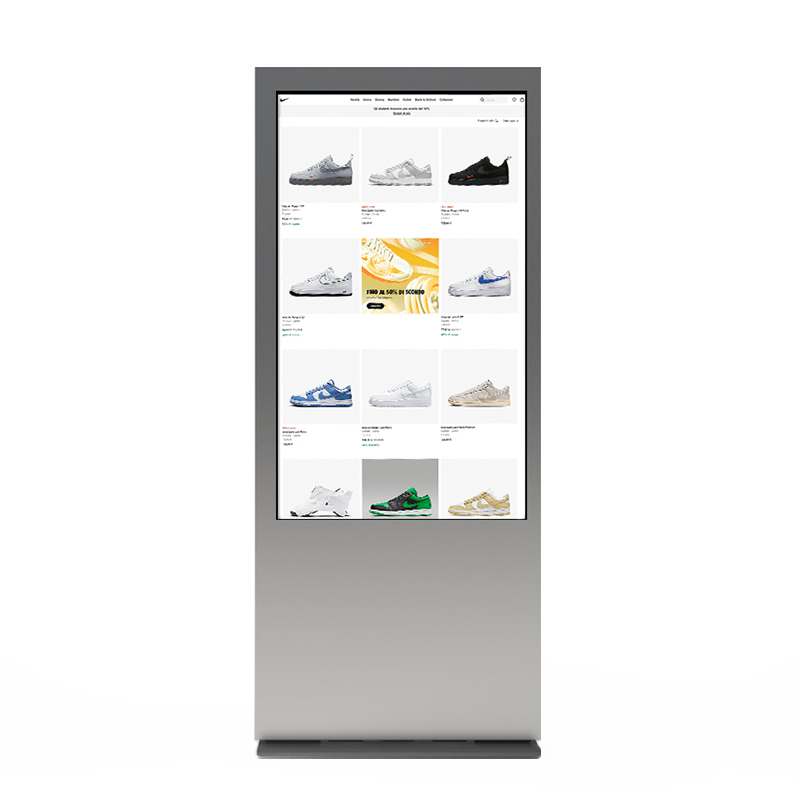

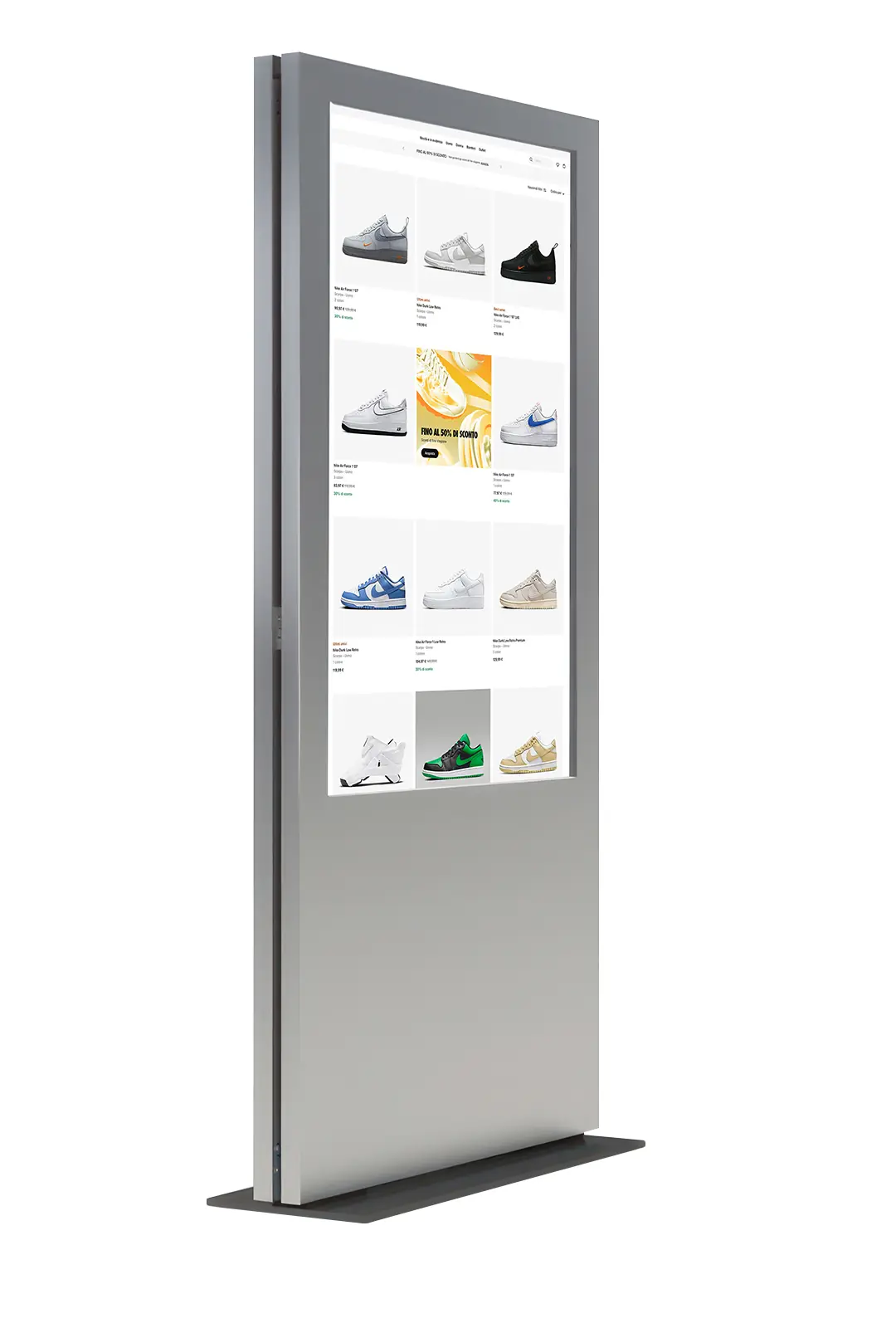

Totem Epoc Shell 55"

Why choose the totem Epoc Shell 55"

Maximum visual impact in a minimal footprint, with no worries about installation or content management.

• 01 Touch screen Capacitive touch version for interactive content and digital catalogues.
• 02 Shell covers Double shell that can be painted in any RAL colour, with a pre-spaced or backlit Plexiglas logo.
• 03 Compact design Just 98 mm deep for a minimal footprint.
• 04 Built-in Wi-Fi and PC Industrial PC player and Wi-Fi connection to manage content remotely.
• 05 24/24 Pro 24/7 display Professional LCD designed to run 24 hours a day.

The shell totem tailored to your brand

The covers can be painted in your preferred colour and customised with a pre-spaced or backlit logo.

• Designed and made in Italy
• Content managed with FluidNext
• Installation and support

The Epoc Shell 55" in real-world settings

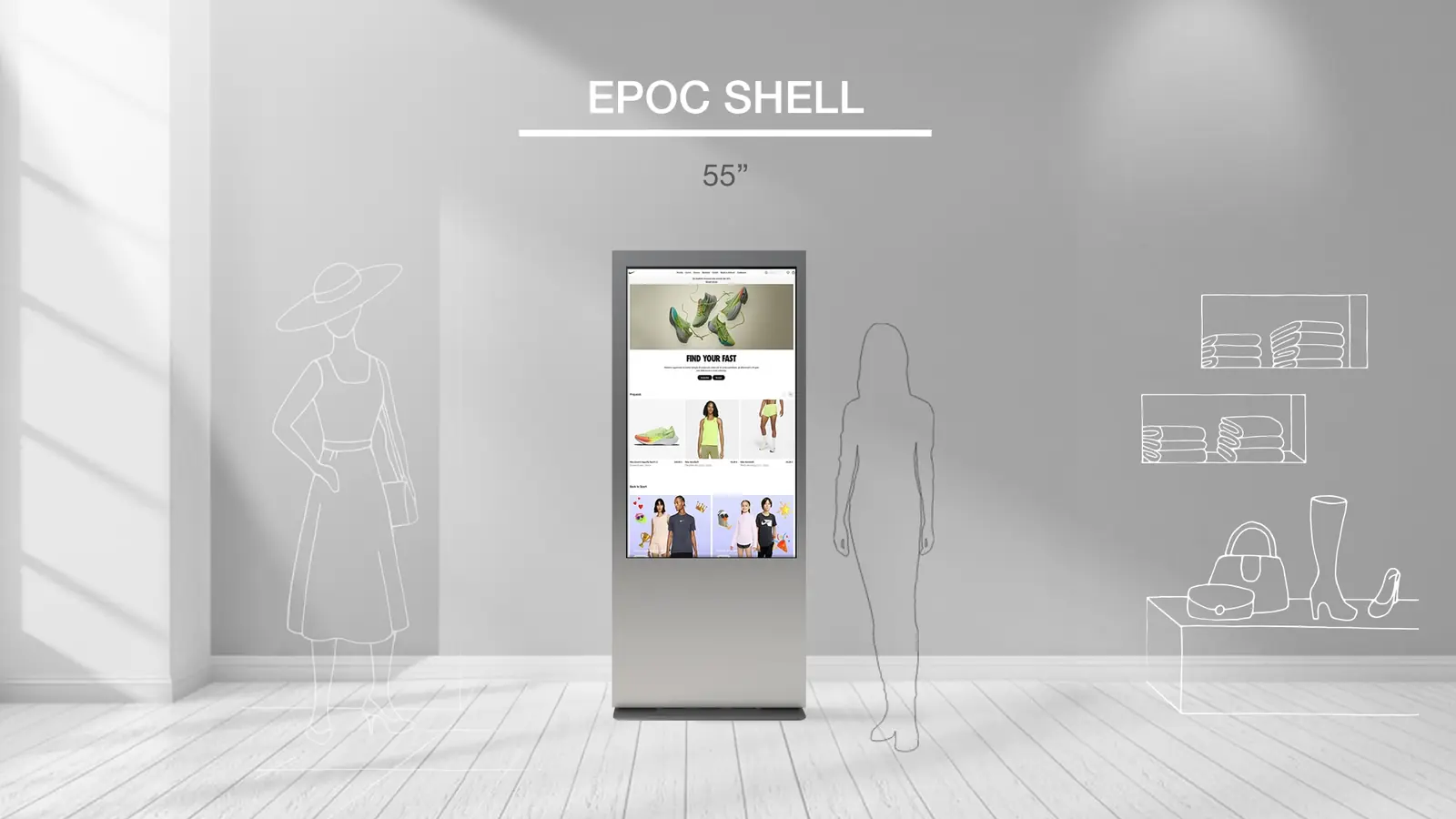

Simulations and installations to help you picture the totem in your store, your offices or your event.

In a perfumery

In store

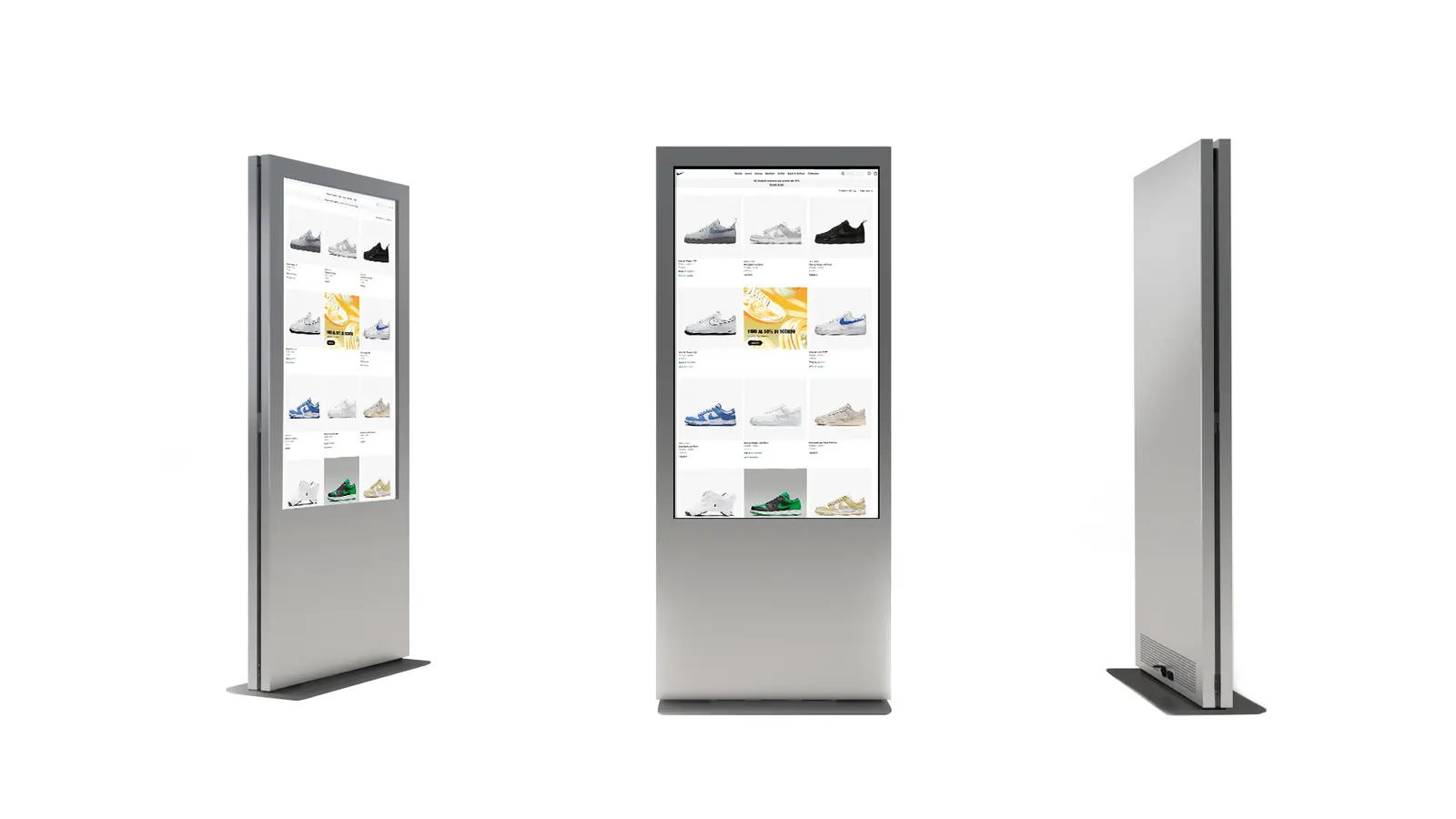

The three views

• Retail Promotions and new arrivals near the entrance, at the checkouts and along the aisles.
• Showroom Products and brands showcased with high-definition video and images.
• Corporate Receptions, lobbies and waiting rooms with always up-to-date information.
• Events and trade fairs Eye-catching content for stands, installations and product launches.

Epoc Shell 55" technical data sheet

All the totem data. For finishes, accessories and custom configurations, our team will prepare a dedicated proposal for you.

• General
• Code · TTI-EPS-M55S-SB (standard) · TTI-EPS-M55T-SB (touch)
• Operating environment · Indoor
• Protection · IP32
• Display
• Size · 55″ portrait
• Display type · Professional 24/7 LCD
• Surface · Anti-glare
• Brightness · 500 nit (standard) · 400 nit (touch)
• Touch screen · Capacitive (touch version)
• Resolution · 2,160 × 3,840 px
• Active area · 680.4 × 1,209.6 mm
• Viewing angle · 178° H / 178° V
• Contrast · 4,000 : 1
• Display area · 0.82 m²

• Structure
• Dimensions (W × H × D) · 818.3 × 1,923.1 × 98 mm
• Finish · Powder-coated structure with double shell casing
• Customisation · RAL colour, pre-spaced or backlit Plexiglas logo
• System
• PC player · Built-in industrial PC
• Operating system · Windows
• Content management · FluidNext
• Connectivity · Built-in Wi-Fi

Epoc Shell 55″ Standard · TTI-EPS-M55S-SB Dimensions in mm

Dimensions of the Epoc Shell 55″ Standard

The dimensions you need to plan the shop window, in-store space or outdoor installation.

• Width 818 mm
• Height 1,923 mm
• Depth 98 mm
• Viewing area 680 × 1,210 mm
• Display bezels 12 mm
• Brightness 500 nit

The Epoc Shell 55" at work

See the totem at work in our clients' projects.

• Retail · Real estate agencies Digital real estate windows High-brightness Epoc Shell totems in the windows of the Tempocasa network. Discover the project
• Retail · Perfumeries The shop-window totem in perfumeries High-brightness Epoc Shell 55″ totems in the windows of affiliated perfumeries. Discover the project
• Retail · Beauty Touch totems in store Touch-screen totems for browsing the online shop in Pinalli beauty stores. Discover the project
• Retail · Quick service restaurants Shop-window totems in restaurants High-brightness shop-window totems alongside menu boards and ledwalls. Discover the project
